American Legend Introduces Super Legend XP

The latest entry into the E-LSA/EAB market is the Super Legend XP Cub from American Legend Aircraft Company.

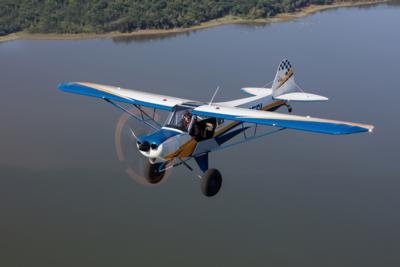

The Super Legend XP (eXtra Performance) modifications include square wingtips, extended flaps and ailerons, 40-gallons- usable fuel tanks, and more. Stunning slow speed characteristics, higher top speed, and greater control authority are the result of the wing modifications. Extra fuel capacity allows for longer roundtrip/backcountry flights without a fuel stop. But that’s just the beginning of what the Super Legend XP has to offer.

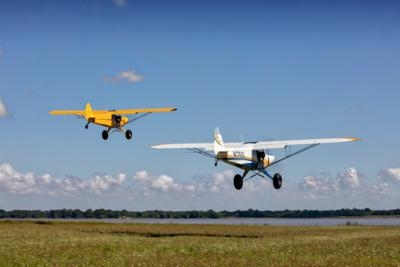

The Super Legend XP also offers more in its undercarriage. A custom-made cabane vee is the perfect match for bigger engines and tundra tires. An extended landing gear puts the wheels three inches forward and adds three inches in height. The results are increased angle of attack for better takeoff performance and improved braking with heavier engines.

Coupled to the extended landing gear are Acme Aero Shocks. These cutting-edge shock absorbers enhance comfort and control during taxi and landing. Acme Aero Shocks regulate rebound and compression with great efficiency. The company’s proprietary system is NASCAR, F1 and Baja Racing tested and proven.

A range of tundra tires—sized from 8.50 to 31 inches—is matched with Grove wheel/brakes on the Super Legend XP. Plus, there’s a choice of heel or toe brakes. A new T3 Tailwheel Suspension System replaces the customary static leaf spring with a dynamic coil spring. With shock absorption that's neither abrupt nor too yielding, the T3’s coil over shock is tuned to provide impact cushioning and limit rebounding. The T3 works with Scott and ABI baby bushwheels.

Further modifications include L-21 style extended rear windows and a skylight, affording pilots nearly 360-degree viewing. Their full effects are observed during low-and-slow surveillance and reconnaissance operations. Safety and ground operations are also enhanced by the increased visibility. A second fuselage enhancement is an extended baggage area, allowing transport of lengthy and bulky gear in the tail of the aircraft. Weight reduction throughout the Legend Cub lineup has also contributed to performance enhancements.

With its Super Legend, American Legend Aircraft Company brought high performance engines to the Cub platform. The Super Legend with a 115-hp Lycoming O-233 increased the aircraft’s power-to-weight ratio to the equivalent of a 150-hp Piper Super Cub. Adding a Titan engine to the Super Legend HP increased power even more.

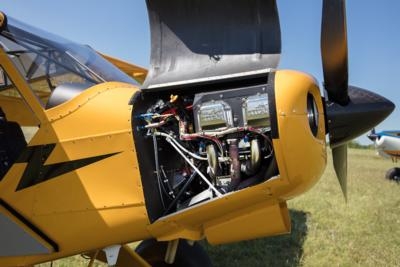

The Super Legend XP with Titan engine is now available in a dual fuel configuration, for operation on mogas or avgas. Switch-selectable, the engine timing is tuned to either fuel grade, while a surplus of power remains available on both. A new, optimized Catto propeller performs extremely well on takeoff. Its fixed pitch also cruises well without over-revving the motor.

“The XP is the best of all worlds. It cruises more comfortably and it performs short takeoffs and landings with the best them," said launch customer Joe Edwards. "My XP stalls at 8 MPH less, at approximately 25 MPH, with its longer flaps.
“There’s a cosmetic benefit too. The XP looks bigger, larger, and heavier. More importantly, the performance goals we achieved met all my expectations.” Other accomplished pilots who favor the Legend Cub are well-known performers such as Bruce Bohannon, Frank Knapp, and Greg Koontz.

American Legend Aircraft Company continues to be one of the most successful manufacturers of sport and recreational aircraft, and is noted for its exceptional product support. American Legend is renowned for building a true Cub, one that is sensibly modern, competitively priced, and built to last.

(Images provided with American Legend news release)

FMI: www.legend.aero
